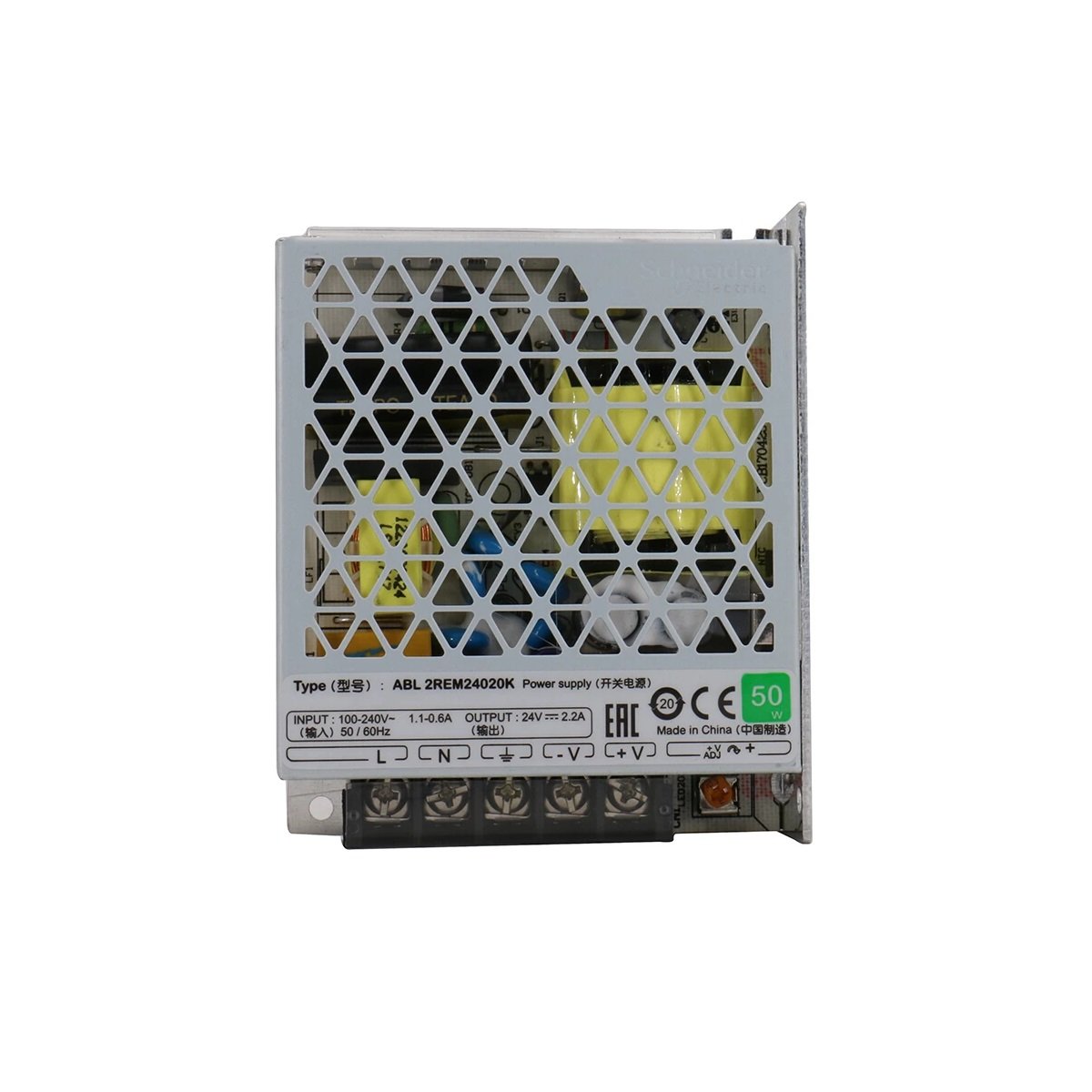

Schneider ABL2REM24020K Power Supply

This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 50W, with a 100V to 240V AC output voltage, and 53W nominal power. Its output current is 2.2A. It offers better performance with cost effective. Its cooling is based on natural convection. It has an automatic voltage switching. Its overload hiccup protection is 170-190%. It measures 99mm wide x 82mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Four types of mounting are available such as direct mounting on back panel, mounting on rear 35mm omega rails, mounting with 4 corner bracket and mounting with L type accessories. Better performance with cost effective. Smart design.
